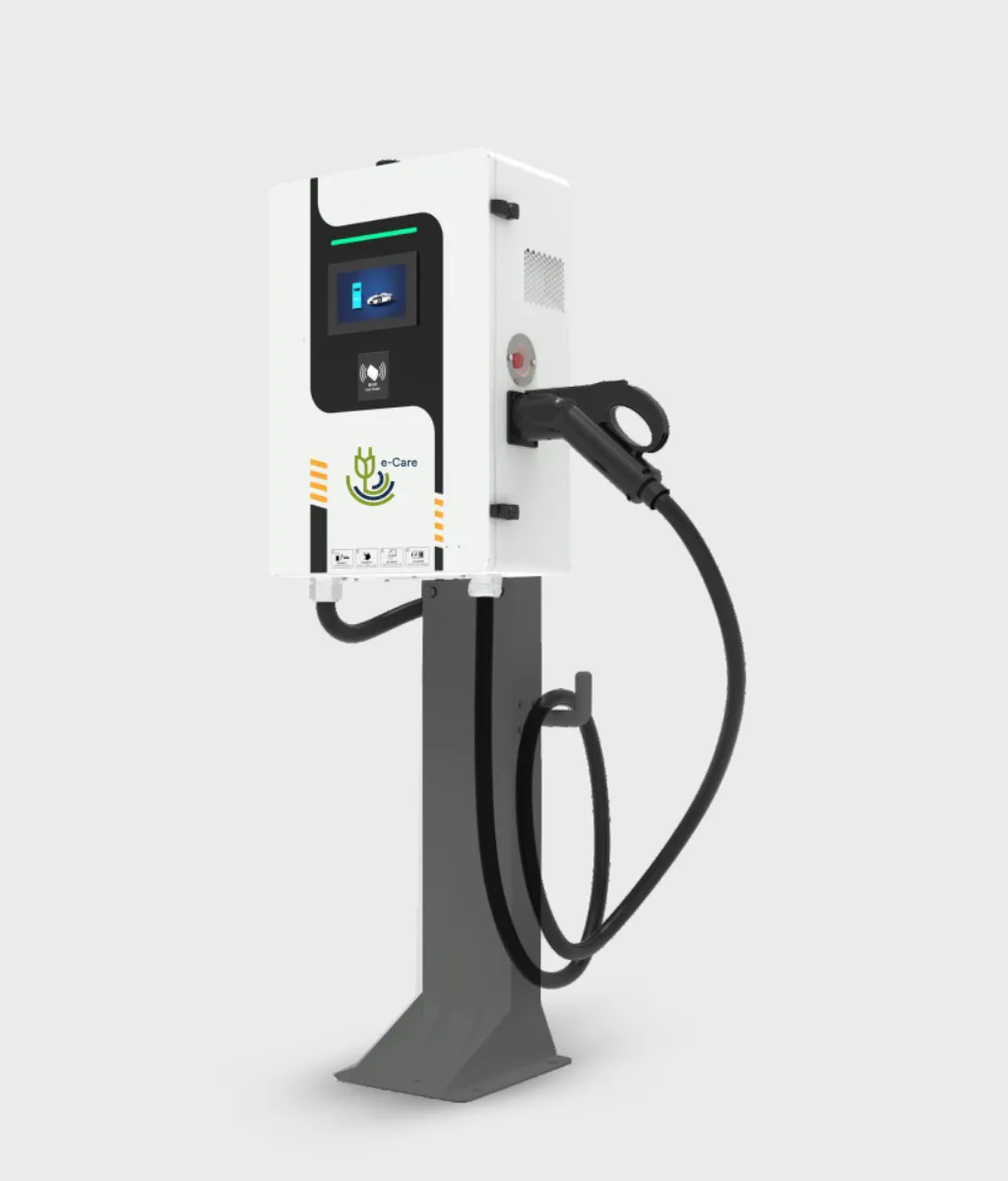

YLCEG22K Vehicle-to-Grid (V2G) charger uses the latest generation of 22kW bidirectional power module. It enables bidirectional energy flow between electric vehicles and the grid, allowing electric vehicles as energy storage devices that participate in grid peak shaving and load fluctuation suppression. Also, it supports dispatch from a higher-level platform to achieve orderly charging and discharging management.
• Bidirectional AC/DC with high-frequency isolation to facilitate bidirectional energy flow between electric vehicles and the grid.
• Effectively participates in grid peak shaving and suppresses load fluctuations.
• Peak efficiency ≥ 95%.
• Wide constant power voltage range, compatible with main platforms.
• Full records of charging and discharging logs and battery data ensure safe system operation.
• Supports remote fault diagnosis and controller OTA upgrades.
| Item | Cabinet parameters | ||||
|---|---|---|---|---|---|
| Basic index | |||||
| Model | YLCES360K | YLCES480K | YLCES640K | YLCES720K | YLCES960K |
| Rated power | 360KW | 480KW | 640KW | 720KW | 960KW |
| Max number of access terminals | 6 | 12 | 12 | 12 | 24 |
| Cooling method | Fan cooling | ||||
| Liquid-cooling terminal | Optional | ||||
| Dimensions (WxDxH) | 1000x800x1850mm | 1300x800x1950mm | 2000x800x1850mm | 2000x800x1850mm | 2620x800x1950mm |
| Weight (KG) | 550 | 690 | 1120 | 1160 | 1380 |
| Input | |||||
| Voltage | 380VAC ±15%, 3P+N+PE | ||||
| Frequency | 45Hz-65Hz | ||||
| Current | 582A | 773A | 1031A | 1160A | 1547A |
| power factor | ≥0.99 | ||||
| iTHD | ≤5% | ||||
| Output | |||||
| Output voltage | 200-1000Vdc | ||||
| Constant power range | 300-1000Vdc | ||||
| Max efficiency | 95% | ||||
| Output voltage error | ≤ ±0.5% | ||||
| Output current error | ≤ ±1% | ||||
| Voltage stabilized accuracy | ≤ ±0.5% | ||||
| Current stabilized accuracy | ≤ ±1% | ||||
| Peak peak ripple | ≤ ±1% | ||||
| Environment | |||||
| Operating temperature | -20 ~ +50°C | ||||
| Storage temperature | -40 ~ +75°C | ||||
| Humidity | 5~95%RH, non-condensing | ||||
| Altitude | 2000m no derating required; >2000m, the working temperature decreases by 1°C for every 100m rise | ||||
| Item | Terminal parameters | ||
|---|---|---|---|
| Basic index | Model | YLCLT600K | YLCLT250K |
| Rated power | 600kW | 250kW | |
| No. of access terminals | 1 | 2 | |
| Cable length | 3.5m/5m | 5m (customized) | |
| Cooling method | Liquid-cooling | Fan cooling | |
| Dimensions (WxDxH) | 650mm x 350mm x 1750mm | 450mm x 200mm x 1600mm | |
| Weight (KG) | 150 | 100 (dual), 80 (single) | |
| HMI | 7-inch color screen | ||
| Start-up method | RFID/Credit Card/VIN/Plug&charge/Scan QR code (optional) | ||
| Output | Platform communication | Ethernet/4G | |
| Current range (air-cooling) | 0-250A per plug | ||
| Current range (liquid-cooling) | 0-600A per plug | ||
| Output voltage | 200-1000Vdc | ||
| Constant power range | 300-1000Vdc | ||
| Max efficiency | >95% | ||
| Output voltage error | ≤ ±0.5% | ||
| Output current error | ≤ ±1% | ||
| Peak peak ripple | ≤ ±1% | ||
| Environmental Conditions | Operating temperature | -20 ~ +50°C | |
| Storage temperature | -40 ~ +75°C | ||
| Operating environment | Indoor or outdoor (IP54) | ||
| Humidity | 5~95%RH, non-condensing | ||
| Altitude | 2000m no derating required; >2000m, the working temperature decreases by 1°C for every 100m rise | ||
