YLCED series split type charging station covers 360kW~960kW, output covers 6~24 terminals, and the system adopts dynamic power distribution technology to greatly improve the utilization rate of charging power. The system supports optional air-cooling terminal and liquid-cooling supercharging terminal, providing solutions for supercharging in different scenarios.
• Main platforms are fully compatible, more than 60 platforms have been accessed, support one-click switching platforms without program updating.
• Support remote fault diagnosis, OTA upgrade for controllers, etc.
• Support various payment methods.
• Glue filling/non-glue filling modules available to provide more options for the full charging scenarios.
• DC output range of 200–1000V, system power capacity ranging from 30 to 960 kW, suitable for a wide range of electric vehicles.
• Excellent high temperature performance, ensure full load operation and fast charging.
• Multi-region linkage sampling ensures comprehensive data collection across diverse environments, safeguarding system integrity and performance.
• Power cabinet and charging terminal split design, terminal with small size, low noise, friendly HMI.
• Dynamic power distribution greatly improve the power utilization.

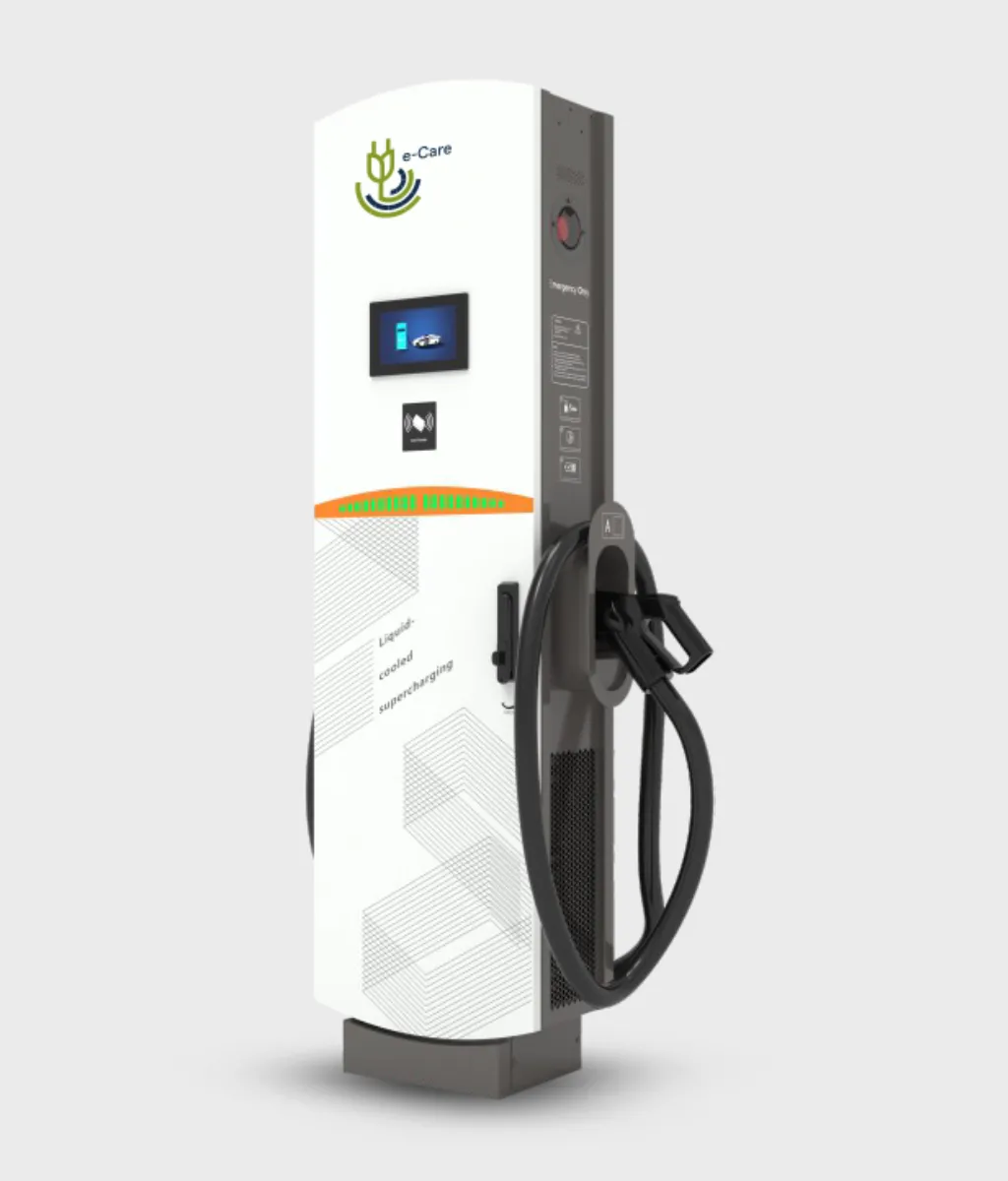

• 250kW terminal/600kW liquid-cooled super terminal available.
| Item | Cabinet parameters | ||||
|---|---|---|---|---|---|
| Basic index | |||||
| Model | YLCES360K | YLCES480K | YLCES640K | YLCES720K | YLCES960K |
| Rated power | 360KW | 480KW | 640KW | 720KW | 960KW |
| Max number of access terminals | 6 | 12 | 12 | 12 | 24 |
| Cooling method | Fan cooling | ||||
| Liquid-cooling terminal | Optional | ||||
| Dimensions (WxDxH) | 1000x800x1850mm | 1300x800x1950mm | 2000x800x1850mm | 2000x800x1850mm | 2620x800x1950mm |
| Weight (KG) | 550 | 690 | 1120 | 1160 | 1380 |
| Input | |||||
| Voltage | 380VAC ±15%, 3P+N+PE | ||||
| Frequency | 45Hz-65Hz | ||||
| Current | 582A | 773A | 1031A | 1160A | 1547A |
| power factor | ≥ 0.99 | ||||
| iTHD | ≤ 5% | ||||
| Output | |||||
| Output voltage | 200-1000Vdc | ||||
| Constant power range | 300-1000Vdc | ||||
| Max efficiency | 95% | ||||
| Output voltage error | ≤ ±0.5% | ||||
| Output current error | ≤ ±1% | ||||
| Voltage stabilized accuracy | ≤ ±0.5% | ||||
| Current stabilized accuracy | ≤ ±1% | ||||
| Peak-peak ripple | ≤ ±1% | ||||
| Environment | |||||
| Operating temperature | -20 ~ +50°C | ||||
| Storage temperature | -40 ~ +75°C | ||||
| Humidity | 5-95%RH, non-condensing | ||||
| Altitude | 2000m no derating required; >2000m, the working temperature decreases by 1°C for every 100m rise | ||||
| Item | Terminal parameters | ||
|---|---|---|---|
| Basic index | Model | YLCLT600K | YLCLT250K |
| Rated power | 600KW | 250KW | |
| No. of access terminals | 1 | 2 | |
| Cable length | 3.5m/5m | 5m (customized) | |
| Cooling method | Liquid-cooling | Fan cooling | |
| Dimensions (WxDxH) | 650mm x 350mm x 1750mm | 450mm x 200mm x 1600mm | |
| Weight (KG) | 150 | 100 (dual), 80 (single) | |
| HMI | 7-inch color screen | ||
| Start-up method | RFID/Credit Card/VIN/Plug&charge/Scan QR code (optional) | ||
| Output | Platform communication | Ethernet/4G | |
| Current range (air-cooling) | 0-250A per plug | ||
| Current range (liquid-cooling) | 0-600A per plug | ||
| Output voltage | 200-1000Vdc | ||
| Constant power range | 300-1000Vdc | ||
| Max efficiency | >95% | ||
| Output voltage error | ≤ ±0.5% | ||
| Output current error | ≤ ±1% | ||
| Peak-peak ripple | ≤ ±1% | ||
| Environment | Operating temperature | -20 ~ +50°C | |
| Storage temperature | -40 ~ +75°C | ||
| Operating environment | Indoor or outdoor (IP54) | ||
| Humidity | 5-95%RH, non-condensing | ||
| Altitude | 2000m no derating required; >2000m, the working temperature decreases by 1°C for every 100m rise | ||
